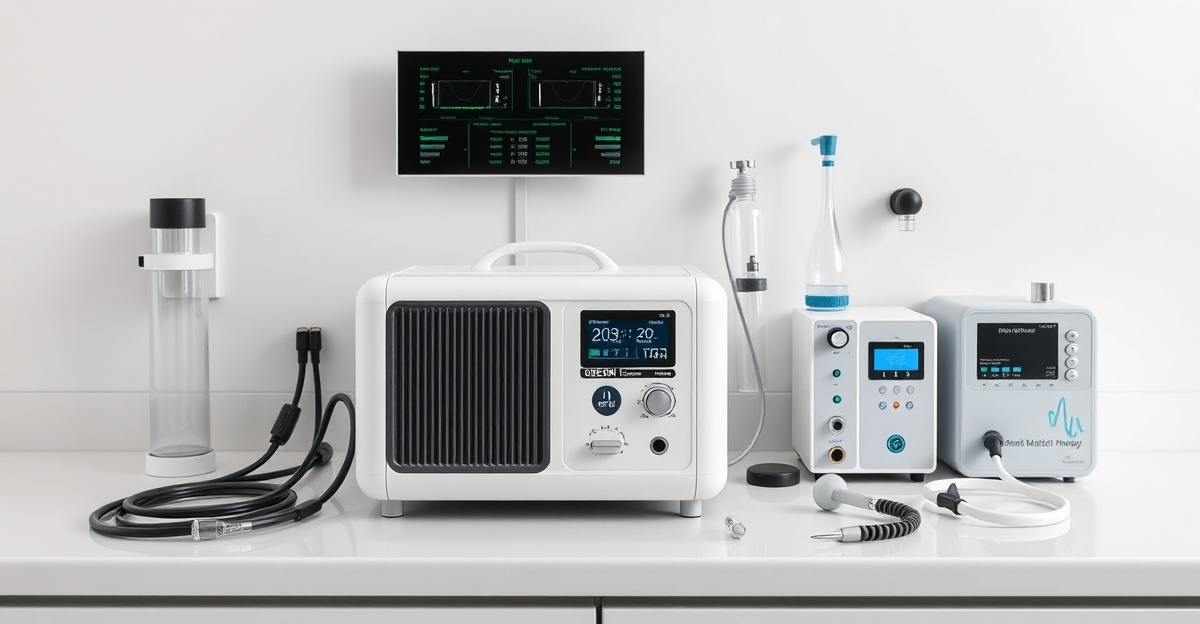

Ozone Therapy Machine: Types, Specs, Costs and How to Choose

An ozone therapy machine is a device that converts medical-grade oxygen into a precise mixture of oxygen and ozone gas for therapeutic use. These machines range from compact home units under $1,000 to clinical-grade systems costing $25,000 or more. Choosing the right one depends on how you plan to use it, what concentration range you need, and whether you are a practitioner or a home user.

This guide covers how ozone generators work, the different types available, key specifications to evaluate, safety requirements, and what you need beyond the machine itself.

How Ozone Therapy Machines Work

Every medical ozone generator uses the same core technology: cold corona discharge. This principle was first applied by Nikola Tesla in 1896 when he patented the first ozone generator.¹

Corona Discharge: The Core Process

Medical-grade oxygen (O2) flows through a chamber containing two electrodes separated by a dielectric material, typically quartz glass. A high-voltage electrical field is applied across the gap. This energy splits some O2 molecules into individual oxygen atoms, which then recombine with intact O2 molecules to form ozone (O3).

The result is a gas mixture of approximately 95-99.5% oxygen and 0.5-5% ozone, depending on the concentration setting.

The term “cold” corona discharge is important. Medical-grade generators keep the discharge chamber cool to prevent heat from degrading the ozone and altering the output concentration. Lower-quality generators that allow heat buildup produce inconsistent ozone concentrations, which is a safety concern for any therapeutic application.²

What Goes In, What Comes Out

Input: Pure oxygen gas (O2) at 99.5% or higher purity. Output: An oxygen-ozone gas mixture at a precisely controlled concentration, measured in micrograms per milliliter (mcg/mL), also written as gamma (γ). Therapeutic concentrations for most ozone therapy applications fall between 5 and 80 mcg/mL.

Types of Ozone Therapy Machines

Ozone generators fall into two broad categories: home-use and clinical-grade. The difference is not just price. It comes down to precision, durability, concentration range, and the applications each machine can support.

Home-Use Ozone Generators

These are designed for individual patients who want to self-administer ozone therapies at home. Common home applications include rectal insufflation, ear insufflation, ozone water, ozone oil making, and breathing ozonated oil (not direct inhalation of ozone gas, which is dangerous).

Home units typically offer:

• Concentration range: 10-85 mcg/mL
• Flow rate: 0.125-1.0 L/min
• Single-chamber corona discharge
• Manual or dial-based concentration adjustment
• Weight: 2-8 lbs
• Price: $500-$3,000

Home machines are NOT suitable for IV ozone procedures like Major Autohemotherapy (MAH) or EBOO. Those require clinical-grade equipment, sterile supplies, and a trained practitioner.

Clinical-Grade Ozone Generators

These are built for medical and dental offices performing ozone therapy procedures. They offer higher precision, wider concentration ranges, and features designed for professional use.

Clinical units typically offer:

• Concentration range: 1-100+ mcg/mL
• Flow rate: 0.25-3.0+ L/min
• Dual-chamber or multi-chamber corona discharge
• Digital concentration display with real-time monitoring
• Built-in ozone destruct unit
• Weight: 10-30 lbs
• Price: $5,000-$25,000

Key Specifications to Evaluate

Whether you are buying a home unit or equipping a clinic, these are the specifications that matter most.

1. Concentration Range

Different ozone applications require different concentrations. Rectal insufflation typically uses 20-35 mcg/mL. MAH blood therapy uses 20-70 mcg/mL. Dental applications may use concentrations above 80 mcg/mL. Make sure the machine covers the range you need.

2. Concentration Accuracy

This is arguably the most important specification. A machine that claims 40 mcg/mL but actually delivers 55 mcg/mL could expose tissues to more ozone than intended. Look for generators with less than 10% error rate in their stated concentration output.²

Higher-end machines use built-in UV spectrophotometers to measure ozone output in real time. Budget machines rely on flow charts (“at X flow rate and Y setting, concentration is approximately Z”), which is less precise but acceptable for non-IV applications.

3. Oxygen Source Compatibility

Medical ozone must be generated from pure oxygen, not room air. Room air contains nitrogen, which produces toxic nitrogen oxides (NOx) when exposed to corona discharge. This is why industrial ozone generators (used for water purification or odor removal) are completely unsuitable for therapeutic use.

Your machine should be compatible with either:

• Medical-grade oxygen tanks: 99.5%+ pure O2, available from medical gas suppliers (best option)
• Industrial oxygen tanks: 99.5%+ pure O2, available from welding supply stores (acceptable and often cheaper)

Standard oxygen concentrators used for respiratory therapy produce 90-95% pure oxygen. Most ozone therapy experts do not recommend these as a primary oxygen source because the 5-10% non-oxygen gases can affect ozone output consistency and purity.³

4. Ozone-Resistant Materials

Ozone is highly reactive. It degrades rubber, certain plastics, and many metals on contact. Every component that touches the ozone gas must be made from ozone-resistant materials:

• Electrodes: Medical-grade titanium
• Discharge tube: Quartz glass or borosilicate glass
• Tubing: Silicone or PTFE (Teflon). Never latex, PVC, or rubber.
• Fittings: Stainless steel, PVDF, or Kynar

If a machine uses non-resistant materials, those components will degrade and release harmful particles into the gas stream. This is a common problem with cheap, imported generators.

“All parts exposed to ozone must be made from ozone-resistant materials to avoid erosion or off-gassing into the resulting ozone-oxygen gas.”
International Scientific Committee of Ozone Therapy (ISCO3)

5. Flow Rate

Flow rate determines how quickly ozone is produced and delivered. For home applications like insufflation, 0.125-0.5 L/min is sufficient. Clinical applications may require 0.5-2.0 L/min or higher, especially for procedures like limb bagging or ozone sauna.

Note that concentration and flow rate are inversely related on most machines. Higher flow rates produce lower concentrations. A machine rated at 80 mcg/mL at 0.25 L/min may only produce 40 mcg/mL at 1.0 L/min.

6. Safety Features

Look for these safety features:

• Ozone destruct unit: Catalytic converter that breaks down excess ozone before it enters the room. Essential for protecting both the patient and practitioner from inhaling ozone gas.
• Automatic shutoff: Turns the machine off if it detects overheating, electrical faults, or loss of oxygen supply.
• Leak-proof connections: Luer-lock or compression fittings that prevent gas leaks.

Reputable Manufacturers

Several companies have established track records in the ozone therapy machine market. This is not an endorsement or product review. These are manufacturers frequently referenced in ozone therapy clinical literature and professional communities.

• Promolife (USA): Offers machines for both home and clinical use. All devices manufactured in the USA using ozone-compatible materials. CE approved. Known for customer support and educational resources. Home units start around $1,200. Clinical units range from $5,000-$12,000.
• Longevity Resources (Canada): Operating for over 28 years. Focused on high-concentration, high-precision generators. Popular with practitioners who want maximum output accuracy. The EXT120 model is a common clinical choice.
• Medozons (Russia/International): Produces clinical-grade generators used widely in European and Asian medical settings. Known for the MEDOZONS-BM model, which offers digital concentration control and built-in photometry. Price range: $8,000-$20,000.
• Dr. Hansler / Herrmann Apparatebau (Germany): The original German medical ozone generator manufacturer. Their devices are the standard in European ozone clinics and are referenced in much of the published clinical research.
• SimplyO3 (USA): Budget-friendly option for home users. Basic but reliable for insufflation and topical applications. Prices start around $500.

What Else You Need Beyond the Machine

An ozone generator alone is not a complete setup. Here is the full list of accessories and supplies you will need.

Required for All Applications

• Oxygen source: Medical or industrial-grade oxygen tank (typically a small “E” cylinder for home use or larger “H” cylinder for clinics), plus a CGA-540 regulator with a 0-1/8 or 0-1/4 LPM flow meter.
• Ozone-resistant tubing: Silicone tubing in the correct diameter for your machine’s output port.
• Ozone destruct unit: If not built into the machine, you need an external catalytic destruct. Costs $30-$100.

Application-Specific Supplies

• Rectal insufflation: Catheter bag set with luer-lock connector ($10-$20 per set)
• Ear insufflation: Modified stethoscope earpiece or custom ear tip
• Ozone water: Glass container with diffuser stone (never plastic)
• Limb bagging: Ozone-resistant bags with sealing mechanism
• Ozone sauna: Personal steam sauna cabinet with ozone port ($300-$2,000)

Estimated Total Setup Costs

Regulatory Considerations

The FDA has not approved ozone generators for medical use in the United States. According to the FDA, “ozone is a toxic gas with no known useful medical application in specific, adjunctive, or preventive therapy.”⁴

This means:

• Ozone generators cannot be marketed as medical devices in the US.
• Manufacturers cannot make specific health claims about their machines.
• Practitioners who use ozone therapy do so under their medical license, at their own discretion.
• Insurance does not cover ozone therapy or ozone therapy equipment.

In Europe and other regions, regulations vary. Germany, Italy, Spain, and several other countries recognize ozone therapy as a legitimate medical practice, and medical ozone generators are regulated accordingly. CE marking (European Conformity) is a common certification for European-market machines.

Despite the FDA position, ozone therapy is legal for practitioners to administer in most US states, and ozone generators are legal to purchase for personal use.

Common Mistakes to Avoid

If you are new to ozone therapy machines, watch out for these frequent errors:

1. Using an industrial ozone generator: These use room air, not pure oxygen, and produce toxic nitrogen oxides. They are designed for water treatment, not therapy. Never use one on the body.
2. Using a standard oxygen concentrator: Most produce only 90-95% pure oxygen. Use a tank with 99.5%+ purity.
3. Breathing ozone gas directly: Ozone is a lung irritant. It should never be inhaled directly. Breathing through ozonated olive oil (with a bubbler) is a different technique and is considered safe at low concentrations.
4. Using non-resistant tubing: Latex, PVC, and rubber degrade when exposed to ozone. Use only silicone or PTFE tubing.
5. Buying based on price alone: A $200 machine from an unknown manufacturer with no ozone-resistant material certification is not a bargain. It is a health risk.

The Bottom Line

An ozone therapy machine is a straightforward device with a specific job: convert pure oxygen into a controlled mixture of oxygen and ozone. The technology itself is well understood and over a century old. What separates a good machine from a bad one is precision, material quality, and safety features.

For home use, a reputable machine in the $800-$2,500 range from an established manufacturer will cover most non-IV applications. For clinical use, expect to invest $5,000-$15,000 for a generator that can support the full range of ozone therapy procedures.

Whatever you choose, start with the right oxygen source, use ozone-resistant materials throughout your setup, and never skip the ozone destruct unit.

Sources

1. Elvis AM, Ekta JS. “Ozone therapy: A clinical review.” J Nat Sci Biol Med. 2011;2(1):66-70. doi:10.4103/0976-9668.82319
2. Medozons Ltd. “Medical Ozone Generators of Medozons Series: Technical Specifications.” Medozons.com. Accessed May 2026.
3. International Scientific Committee of Ozone Therapy (ISCO3). “Madrid Declaration on Ozone Therapy.” 2nd ed. ISCO3; 2015.
4. U.S. Food and Drug Administration. “CFR – Code of Federal Regulations Title 21, Part 801.415.” FDA.gov. Accessed May 2026.
